Liftgate Recess Removal/Installation

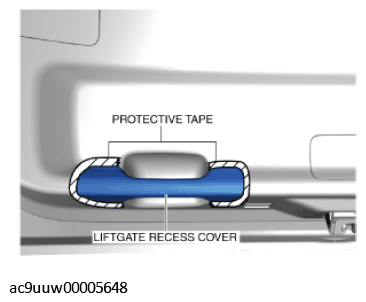

  1. Affix protective tape to the position shown in the figure.
    G11434967Courtesy of MAZDA MOTORS CORP.

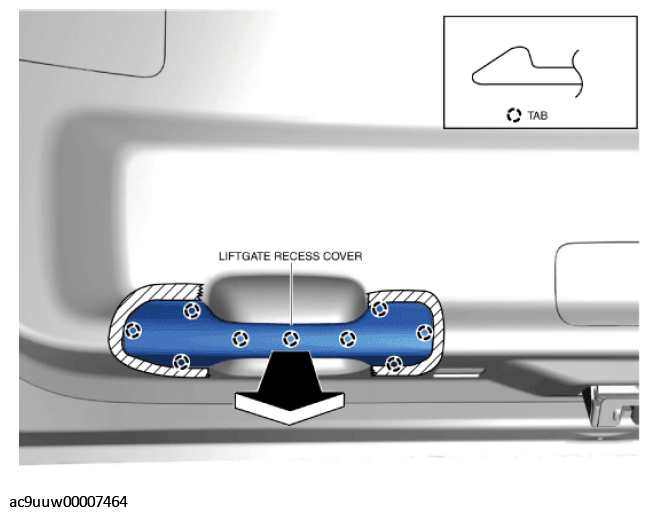

  2. Using the remover tool, remove the liftgate recess cover in the direction of arrow shown in the figure while detaching the tabs.
    G11434968Courtesy of MAZDA MOTORS CORP.

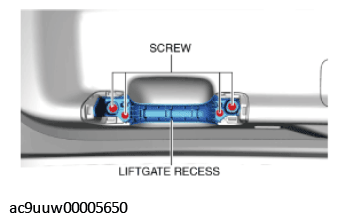

  3. Remove the screws.
    G11434969Courtesy of MAZDA MOTORS CORP.
  4. Remove the liftgate recess.
  5. Install in the reverse order of removal.
