Intake-Air System Vacuum Hose Routing Diagram

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

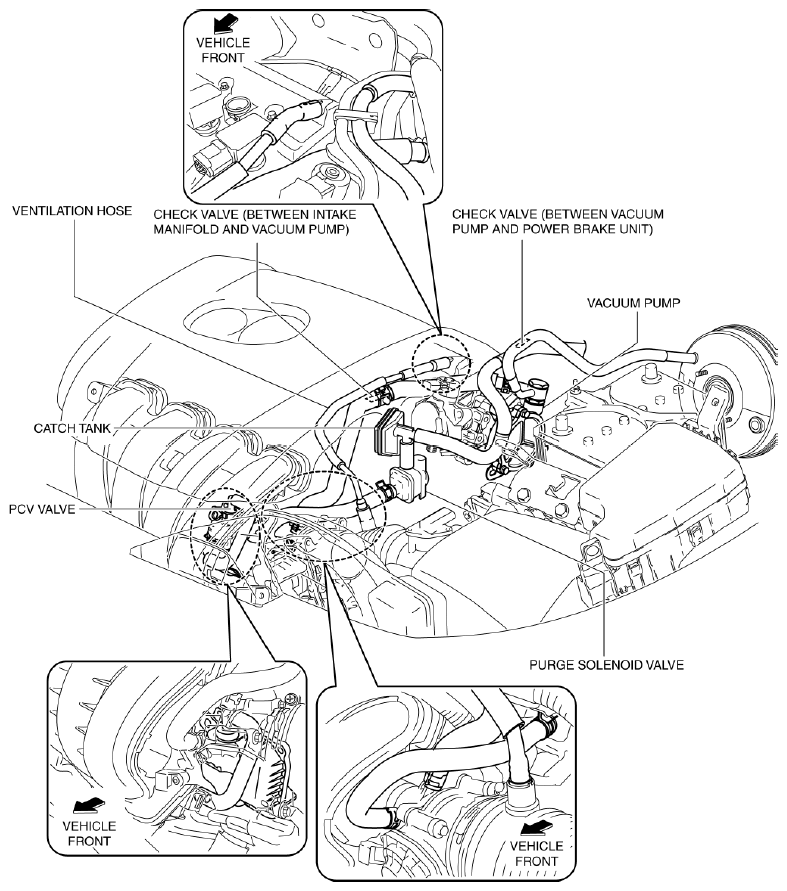

Fig 1: Intake-Air System Vacuum Hose Routing Diagram (SKYACTIV-G 2.0 And SKYACTIV-G 2.5)

Courtesy of MAZDA MOTORS CORP.
