Front Door Glass Preparation
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
Perform the adjusting the top of the front door glass to the position approx. 70 mm {2.8 in} away from the front beltline molding.

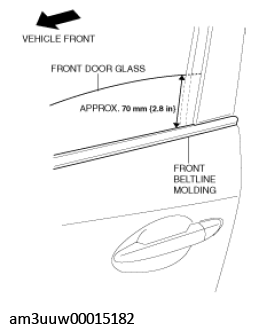

Fig 1: Adjusting Top Of Front Door Glass
Courtesy of MAZDA MOTORS CORP.
