Power Liftgate (PLG) Rear Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Insert a remover tool into the service hole, move it in the direction of the arrow shown in the figure, and remove cover No. 1.

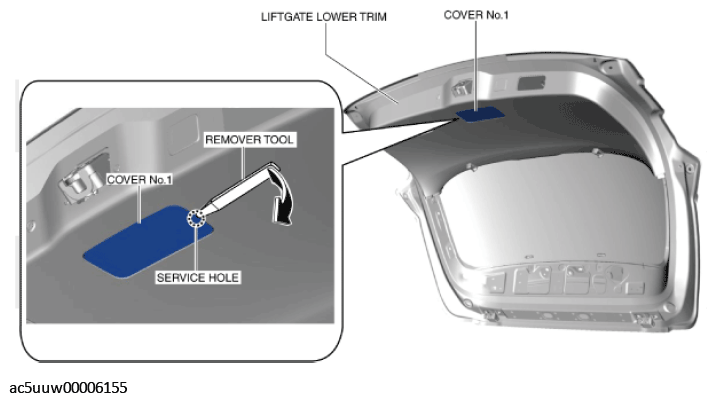

Fig 1: Inserting Remover Tool Into Service Hole
Courtesy of MAZDA MOTORS CORP.
Insert your hand from the cover No. 1 installation hole, and remove the power liftgate (PLG) rear switch in the direction of the arrow shown in the figure while detaching the tabs from the liftgate lower trim.

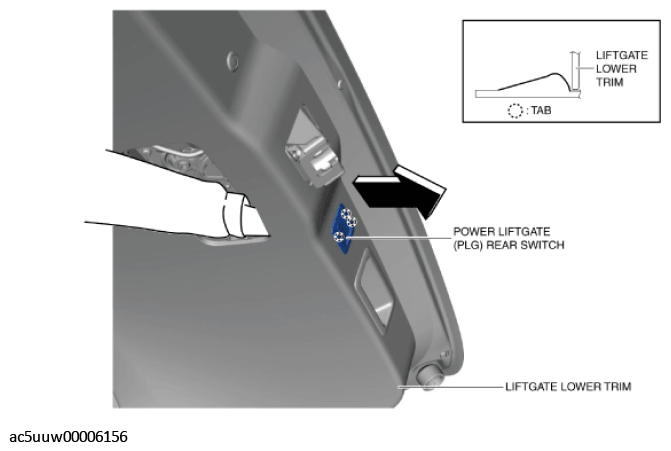

Fig 2: Removing Power Liftgate (PLG) Rear Switch
Courtesy of MAZDA MOTORS CORP.
Disconnect the power liftgate (PLG) rear switch connector.
Install in the reverse order of removal.
