Liftgate Recess Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

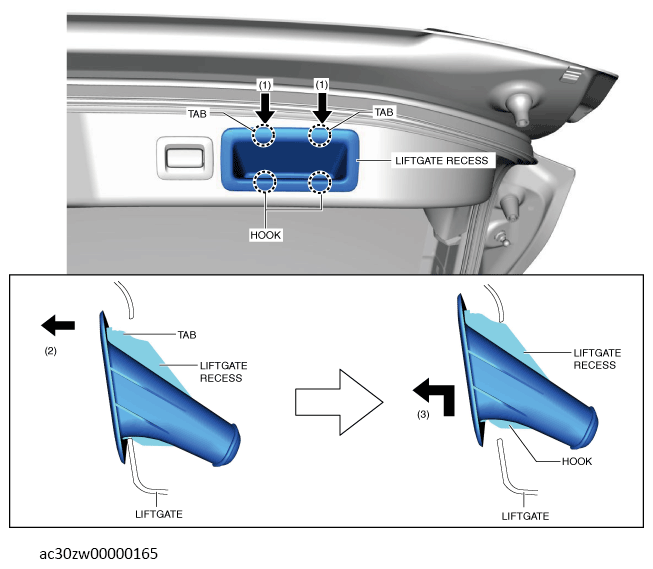

- While pressing the liftgate recess in the direction of arrows (1) shown in the illustration, move the liftgate recess in the direction of arrow (2) to detach the liftgate recess tabs from the liftgate.
- Remove the liftgate recess in the direction of arrow (3) shown in the illustration while detaching the hooks of the liftgate recess.
- Install in the reverse order of removal.
