ECT Sensor No. 2: Specification

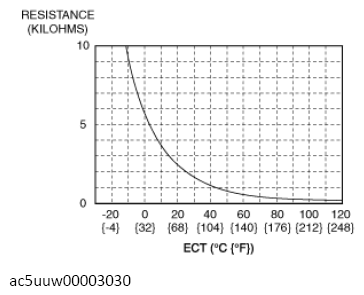

RESISTANCE SPECIFICATION
| Engine coolant temperature (°C {°F}) |
Resistance (Kilohms) |
| 20{68} |
Approx. 2.45 |
| 80{176} |
Approx. 0.318 |
 Courtesy of MAZDA MOTORS CORP.
|
