ECT sensor No. 1: Specification

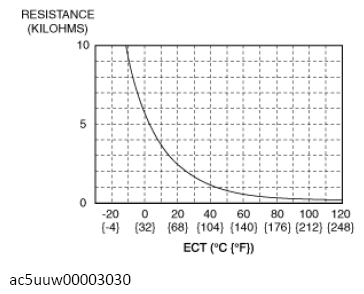

RESISTANCE SPECIFICATION
| ECT (°C {°F}) |
Resistance (Kilohms) |
| 20 {68} |
Approx. 2.45 |
| 80 {176} |
Approx. 0.318 |
 Courtesy of MAZDA MOTORS CORP.
|
