Pattern 1
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of MAZDA MOTORS CORP.

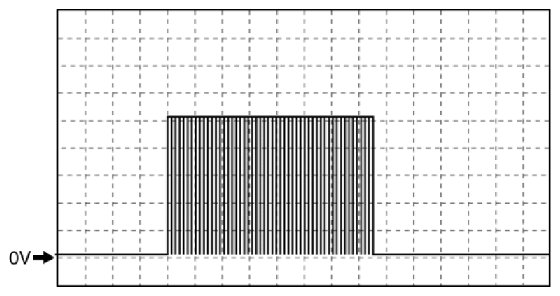

- LF control unit: H (+) ↔ body ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 100 ms/DIV (X), DC range
