Oil Cooler Water Pipe Component Installation Note

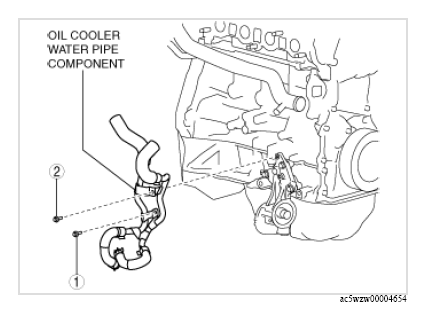

- Install the oil cooler water pipe component in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
