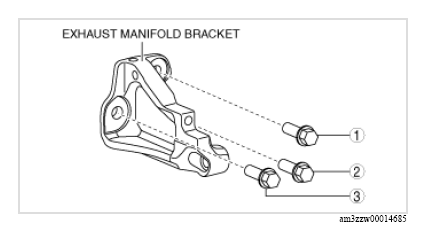

Exhaust Manifold Bracket Installation Note
- Temporarily tighten the exhaust manifold bracket installation bolts.
- Tighten the bolt in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
