Rear Window Defogger System Inspection
>>
Manual Air Conditioner
>>
System wiring diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

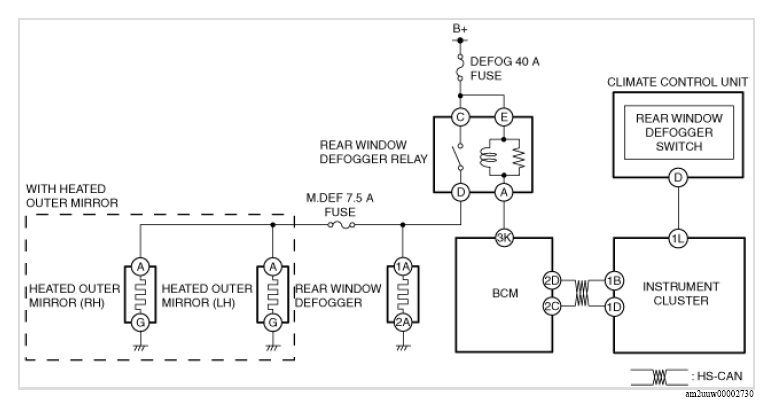

System wiring diagram
Courtesy of MAZDA MOTORS CORP.
