Felt Replacement Procedure

  1. Peel off the old felt from the trunk board.
  2. Peel off the paper backing of the new felt.

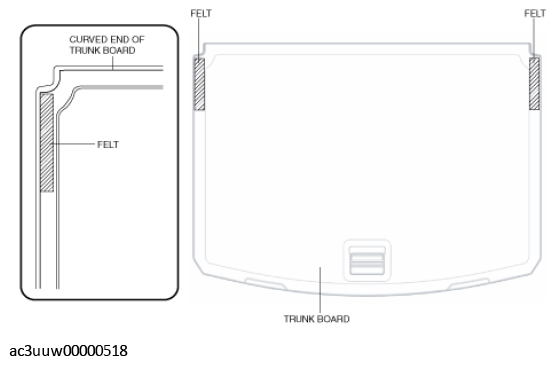

  3. Adhere the felt to the area shown in the figure.
    G11434613Courtesy of MAZDA MOTORS CORP.
  4. Press the felt and attach it to the trunk board by applying pressure.
