SUNVISOR Removal/Installation

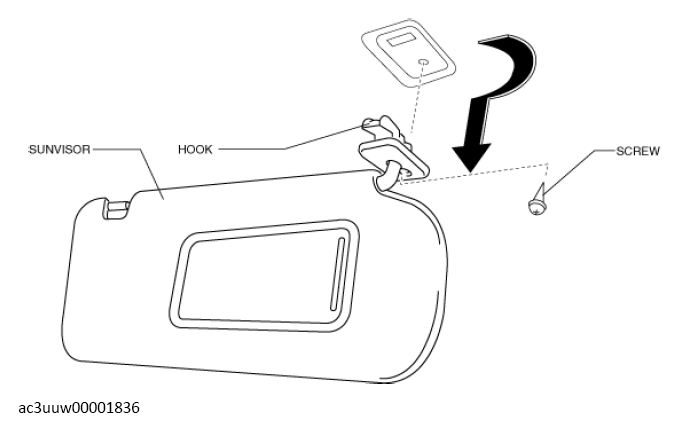

  1. Remove the screw.
  2. Remove the sunvisor in the direction of the arrow shown in the figure while detaching the hook.
    G13152907Courtesy of MAZDA MOTORS CORP.

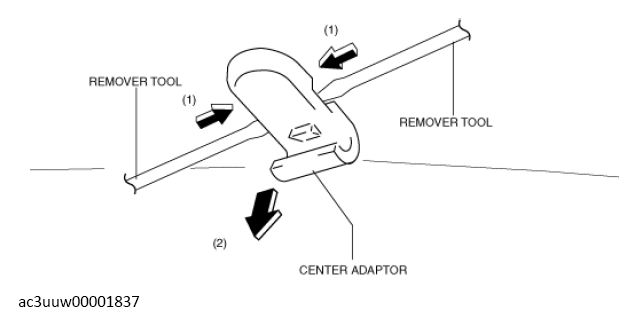

  3. Press the center adaptor tabs in the direction of arrows (1) shown in the figure using two remover tools.
    G13152908Courtesy of MAZDA MOTORS CORP.
  4. Remove the center adaptor in the direction of arrow (2) shown in the figure.
  5. Install in the reverse order of removal.
