DTC B109E-87: Communication Error With Start Stop Unit: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B109E:87 (REAR BODY CONTROL MODULE (RBCM)) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Communication Error With Start Stop Unit |
| Detection condition |
- Rear body control module (RBCM) detects a communication error with the start stop unit for 10 times continuously.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Start stop unit connector or terminal malfunction
- Rear body control module (RBCM) connector or terminal malfunction

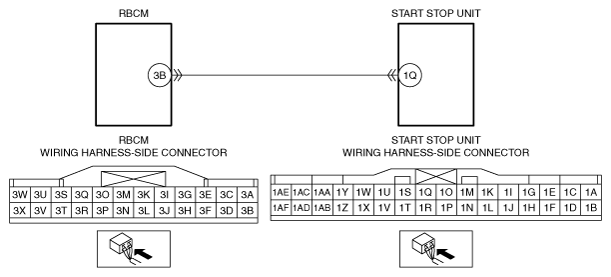

- Short to ground in wiring harness between rear body control module (RBCM) terminal 3B and start stop unit terminal 1Q
- Short to power supply in wiring harness between rear body control module (RBCM) terminal 3B and start stop unit terminal 1Q
- Open circuit in wiring harness between rear body control module (RBCM) terminal 3B and start stop unit terminal 1Q
- Start stop unit malfunction
- Rear body control module (RBCM) malfunction
|
|
|
