Global Positioning System (GPS) Antenna Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US)
.)
- Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION
.)

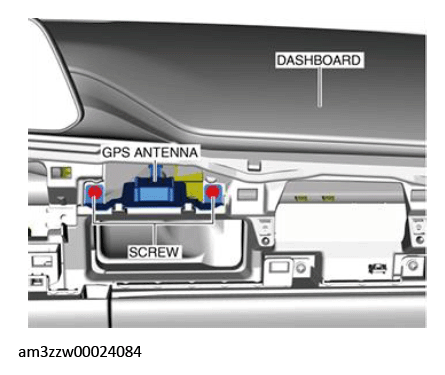

- Remove the screws.
 Courtesy of MAZDA MOTORS CORP.
|

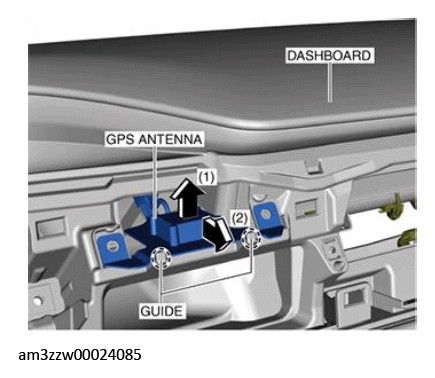

- Move the GPS antenna in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.
 Courtesy of MAZDA MOTORS CORP.
|

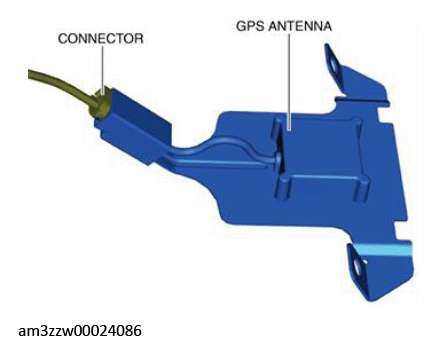

- Disconnect the connector.
 Courtesy of MAZDA MOTORS CORP.
|
- Install in the reverse order of removal.
