Automatic Transaxle Shift Mechanism Location Index

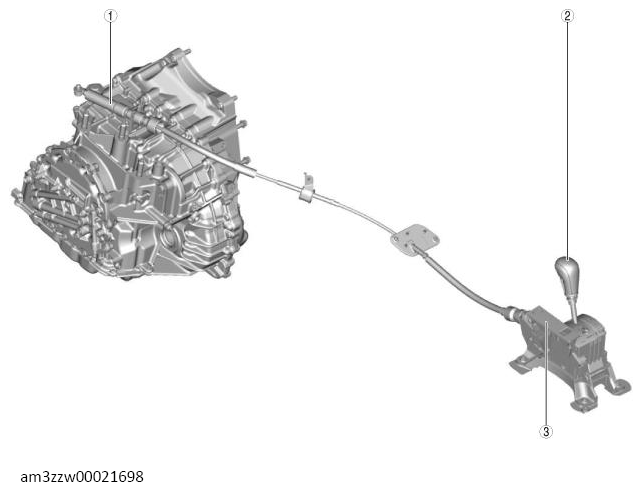

G13716017Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Selector cable
(See SELECTOR CABLE REMOVAL/INSTALLATION (US) .)
(See SELECTOR CABLE ADJUSTMENT .)
2 Selector lever component
(See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
(See SELECTOR LEVER INSPECTION .)
(See SHIFT-LOCK SYSTEM INSPECTION .)
(See SHIFT-LOCK SOLENOID INSPECTION .)
(See SHIFT-LOCK OVERRIDE BUTTON INSPECTION (US) .)
(See NOT P POSITION SWITCH INSPECTION .)
3 Indicator
(See INDICATOR REMOVAL/INSTALLATION .)
(See INDICATOR INSPECTION .)
