Coil Spring Installation Note

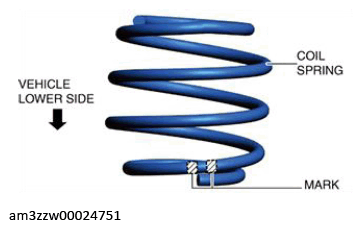

- Install the front coil spring to the SST (49 T034 1A0) with the mark facing the vehicle lower side.
 Courtesy of MAZDA MOTORS CORP.
|
- Compress the coil spring using the SST (49 T034 1A0).
 Courtesy of MAZDA MOTORS CORP.
|
- Align the bottom edge of the coil spring with the stepped part of the lower spring seat, and install the shock absorber.
