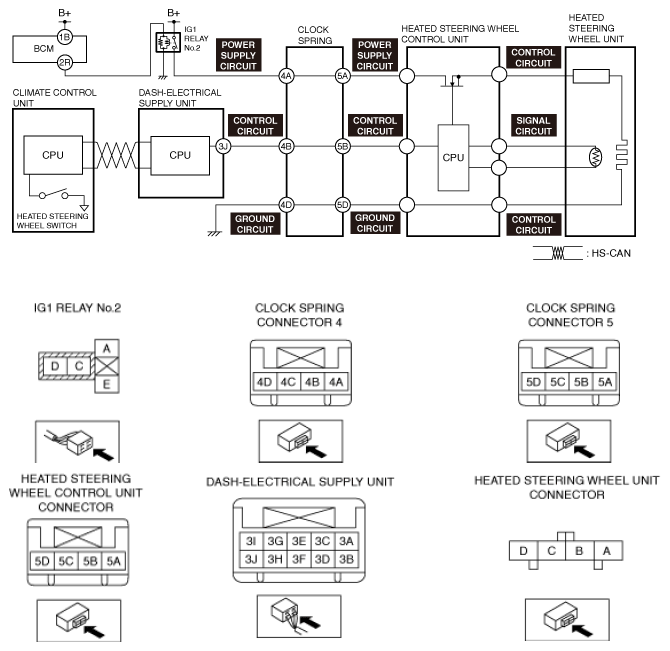

No. 3 Temperature For Heated Steering Wheel System Cannot Be Stable: Notes
| Troubleshooting item |
Temperature for heated steering wheel system cannot be stable |
| Description |
- Heated steering wheel temperature is low
- Heated steering wheel temperature continues to rise
|
| Possible Causes |
Heated steering wheel control unit cannot control heated steering wheel unit
- Heated steering wheel control unit malfunction
- Heated steering wheel unit malfunction
- Thermostat (built into heated steering wheel unit) malfunction
- Thermistor (built into heated steering wheel unit) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
