Tie-Rod End Inspection: Notes
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION
.)
- Remove the tie-rod end. (See TIE-ROD END REPLACEMENT .)

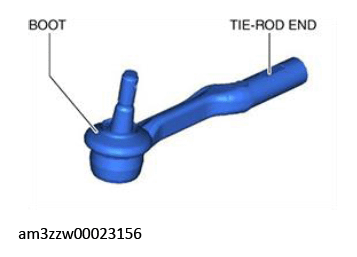

- Inspect the tie-rod end for damage and the boot for cracks.
 Courtesy of MACK TRUCKS, INC.
|
- Inspect the tie-rod end for excessive play.
- Rotate the ball joint of the tie-rod end 5 times.

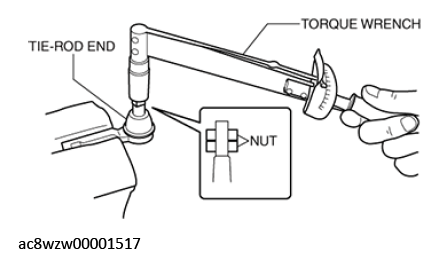

- Install 2 nuts to the ball joint and measure the rotation torque of the tie-rod end using a torque wrench.
 Courtesy of MACK TRUCKS, INC.
|
