Spacer, Rubber, EPS Control Module Installation Note
- Install the spacer and rubber to the steering column.

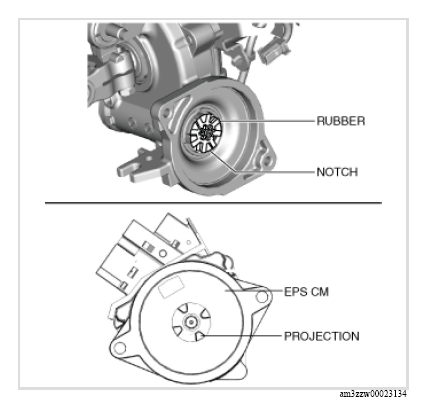

- Install the EPS Control Module so that the projection of the EPS Control Module (rotor) is engaged with the notch in the rubber.
 Courtesy of MACK TRUCKS, INC.
|
CAUTION:
- When assembling the EPS Control Module, be careful not to pinch the wiring harness of the torque sensor. If the wiring harness of the torque sensor is damaged, replace the steering column component.
NOTE:
- If the projection of the EPS Control Module (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS Control Module projection (rotor).
