Electrical System (Us)]: Inspection

CAUTION:
  • To prevent damage to the terminal, wrap a thin wire around the tester probe before inserting into terminal.

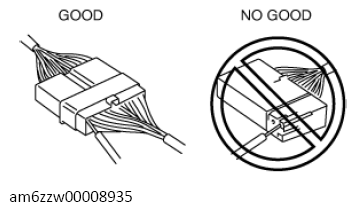

  • When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.
    G13671052Courtesy of MAZDA MOTORS CORP.

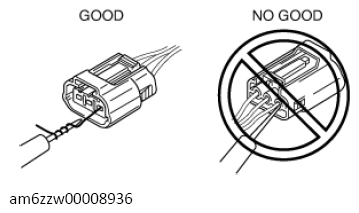

  • Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.
G13671053Courtesy of MAZDA MOTORS CORP.
