Intake Manifold Installation Note
WARNING: This page is about a different variant/trim than selected.
- Install the intake manifold.

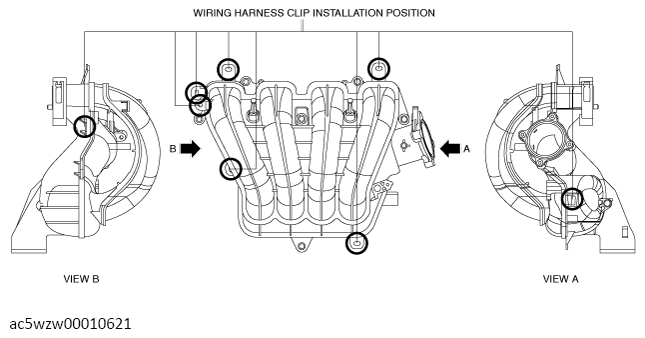

- Connect the wiring harness clip to the intake manifold shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
