Insulator Installation Note
WARNING: This page is about a different variant/trim than selected.

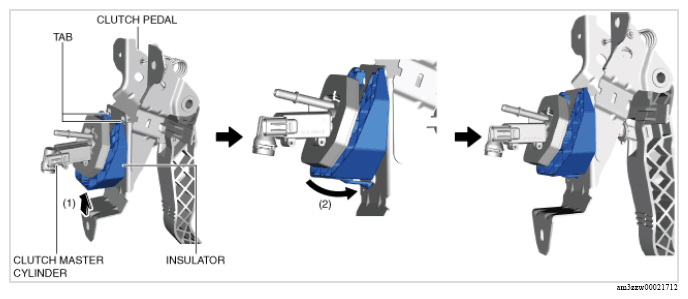

- Move the insulator in the direction of arrow (1) shown in the figure and hook the insulator tabs onto the clutch pedal.
 Courtesy of MAZDA MOTORS CORP.
|
- Press the insulator in the direction of arrow (2) shown in the figure and install the insulator.
- Verify that the insulator is securely installed.
