Set Plate Component Installation Note
WARNING: This page is about a different variant/trim than selected.

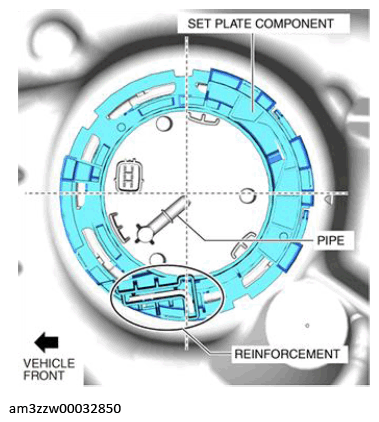

- Align the reinforcement part of the set plate component near the pipe area of the fuel pump unit as shown in the figure and assemble.
 Courtesy of MAZDA MOTORS CORP.
|
