Mode 6 - 1999-2023 MAZDA: MAZDA5: 2012

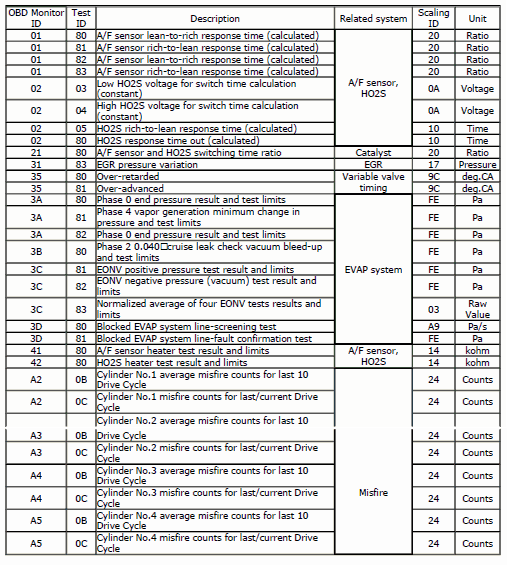

Fig 1: Mode $06 Data For '12 Mazda5

Courtesy of MAZDA MOTORS CORP.
