Battery tray and PCM component installation note

  1. Tighten the battery tray installation bolts in the order shown in the figure.

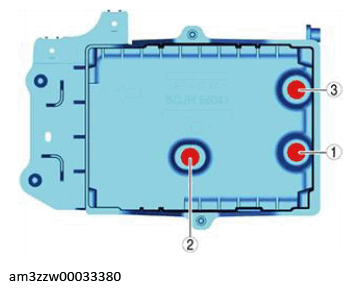

Fig 1: Battery Tray Bolts Tightening Sequence
G13175306Courtesy of MAZDA MOTORS CORP.
