Spacer, Bearing Inner Race Assembly Note
- Install a new spacer of the same size as the originally installed spacer.
SPACER THICKNESS SPECIFICATION
| Identification mark |
Thickness (mm {IN}) |
Identification mark |
Thickness (mm {IN}) |
| 08 |
3.08 {0.1213} |
29 |
3.29 {0.1295} |
| 09 |
3.095 {0.1219} |
30 |
3.305 {0.1301} |
| 11 |
3.11 {0.1224} |
32 |
3.32 {0.1307} |
| 12 |
3.125 {0.1230} |
33 |
3.335 {0.1313} |
| 14 |
3.14 {0.1236} |
35 |
3.35 {0.1319} |
| 15 |
3.155 {0.1242} |
36 |
3.365 {0.1325} |
| 17 |
3.17 {0.1248} |
38 |
3.38 {0.1331} |
| 18 |
3.185 {0.1254} |
39 |
3.395 {0.1337} |
| 20 |
3.20 {0.1260} |
41 |
3.41 {0.1343} |
| 21 |
3.215 {0.1266} |
42 |
3.425 {0.1348} |
| 23 |
3.23 {0.1272} |
44 |
3.44 {0.1354} |
| 24 |
3.245 {0.1278} |
45 |
3.455 {0.1360} |
| 26 |
3.26 {0.1283} |
47 |
3.47 {0.1366} |
| 27 |
3.275 {0.1289} |
- |
- |

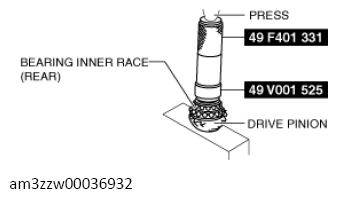

- Press the bearing inner race (rear) into the drive pinion using the SSTs and a press.
 Courtesy of MAZDA MOTORS CORP.
|
