Sunshade Disassembly Note

CAUTION:

When removing the sunshade, the sunshade handle could interfere with the sunroof frame and cause part damage.

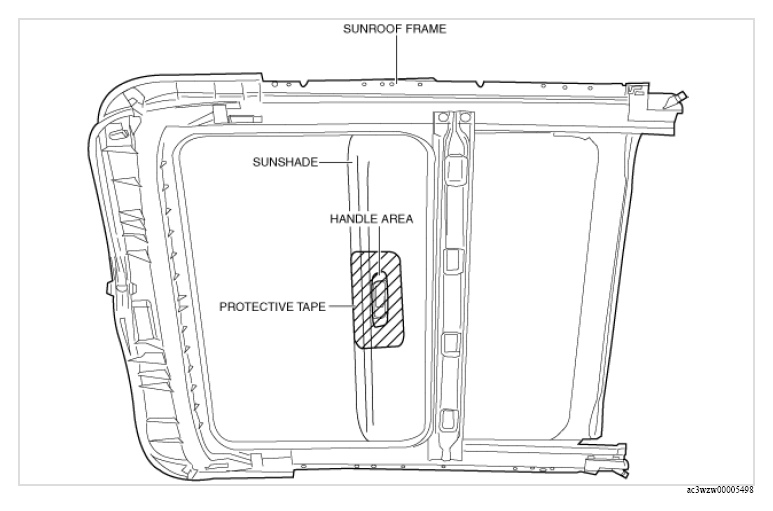

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

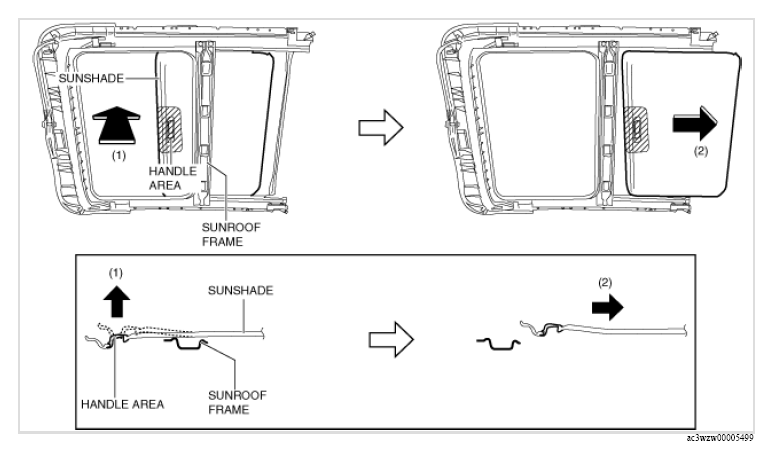

Remove the sunshade while lifting it up in the direction of arrow (1) shown in the figure and sliding it in the direction of arrow (2).

Courtesy of MAZDA MOTORS CORP.
