Glass Panel Removal/Installation: Notes
- Fully open the sunshade.
- Fully close the glass panel.

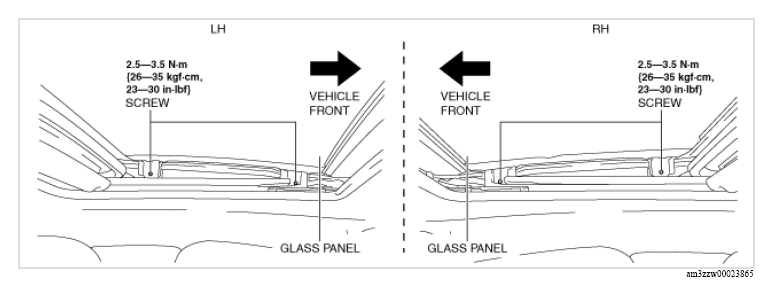

- Remove the screws.
Courtesy of MAZDA MOTORS CORP.
- Remove the glass panel in the direction of the arrow shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
- Partially peel back the weatherstrip from the glass panel. (See WEATHERSTRIP INSTALLATION NOTE .)
- Install in the reverse order of removal.
