Shift Panel Removal/Installation: ATX

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
  3. Move the shift panel in the order of arrows (1), (2), and (3) shown in the figure, and detach the clips.

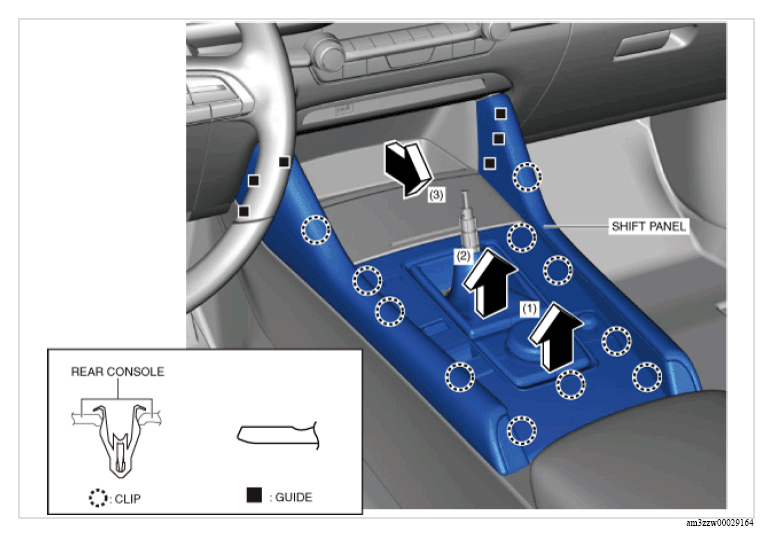

    G13179520Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.

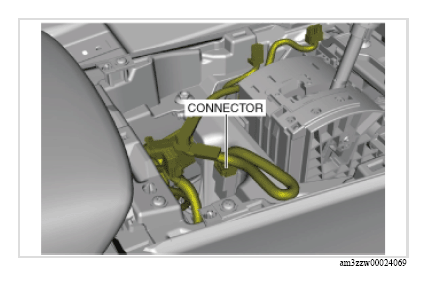

    G13179521Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connectors.

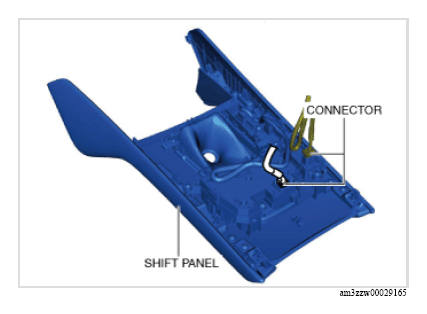

    G13179522Courtesy of MAZDA MOTORS CORP.
  6. Remove the shift panel.
  7. Install in the reverse order of removal.
