Front Side Trim Removal/Installation
- Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

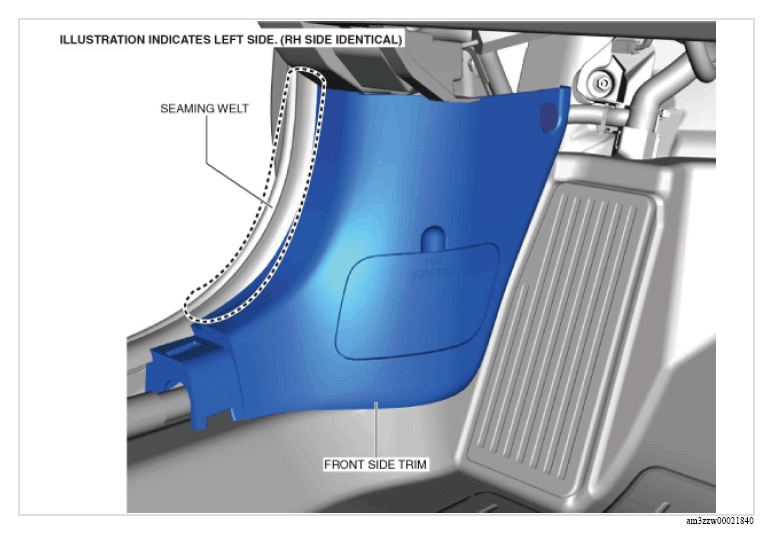

- Partially peel back the seaming welt.
 Courtesy of MAZDA MOTORS CORP.
|

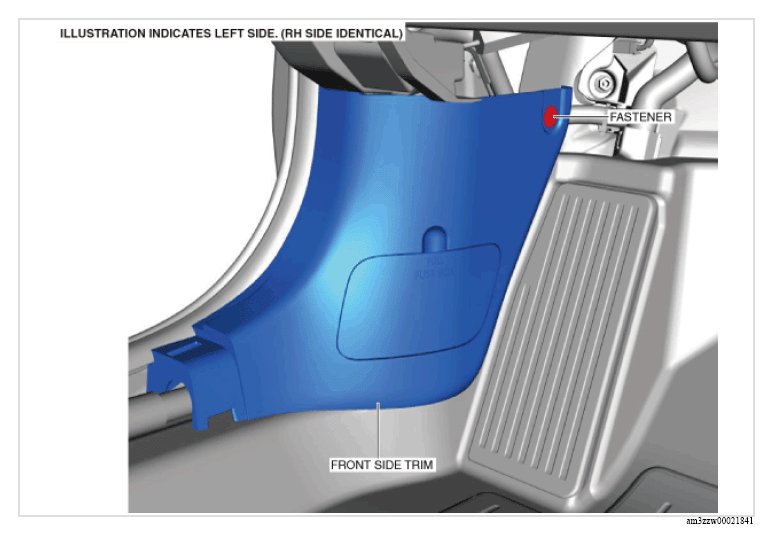

- Remove the fastener.
 Courtesy of MAZDA MOTORS CORP.
|

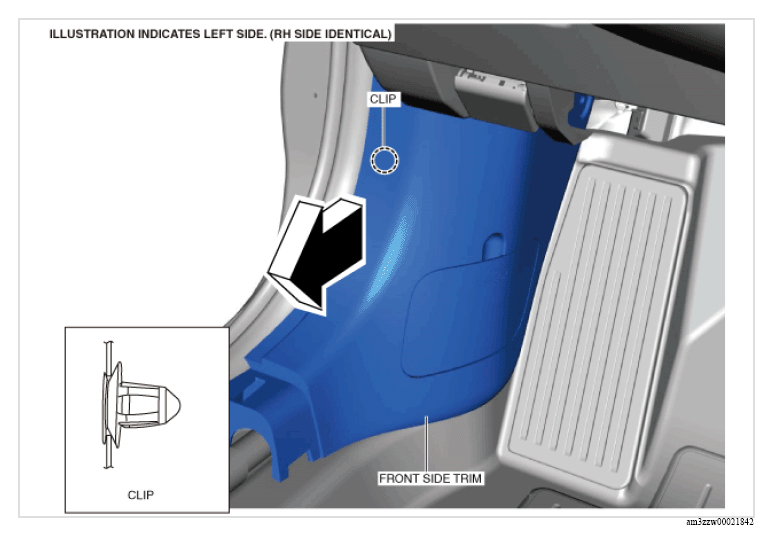

- Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching the clip.
 Courtesy of MAZDA MOTORS CORP.
|
- Install in the reverse order of removal.
