Console Lid Lock Removal/Installation
- Open the console lid.
 Courtesy of MAZDA MOTORS CORP.
|

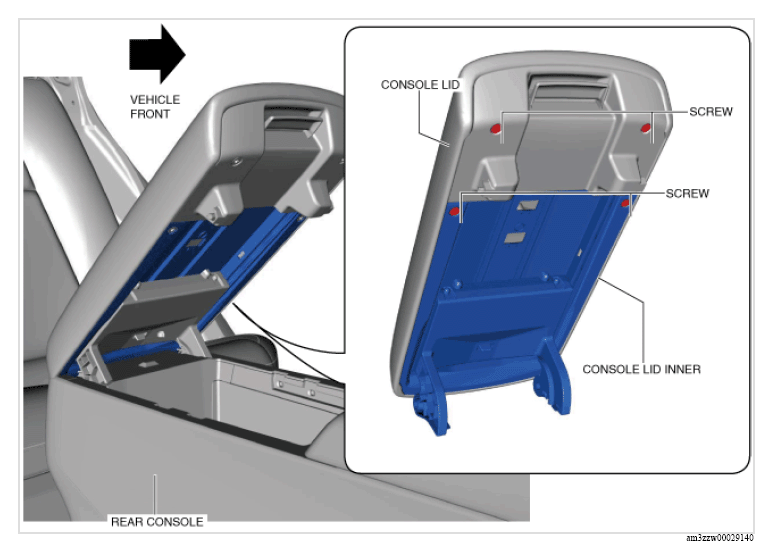

- Remove the screws.

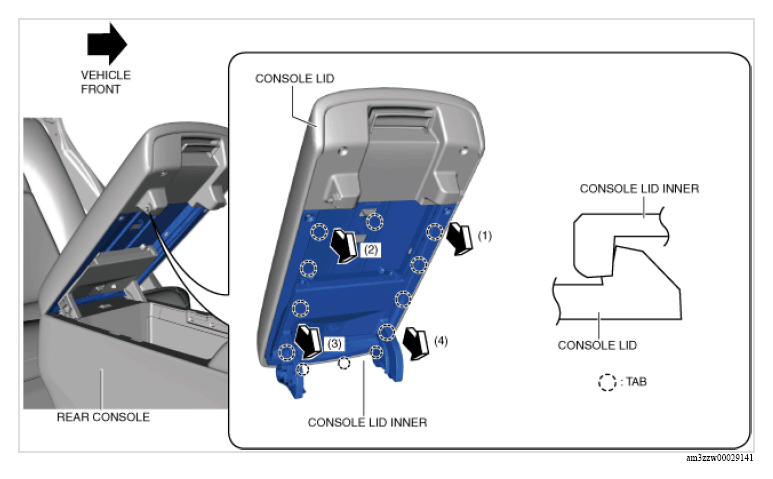

- Using a remover tool, move the console lid inner in the order of arrows (1), (2), (3), and (4) shown in the figure, detach the tabs, and remove the console lid inner.
 Courtesy of MAZDA MOTORS CORP.
|

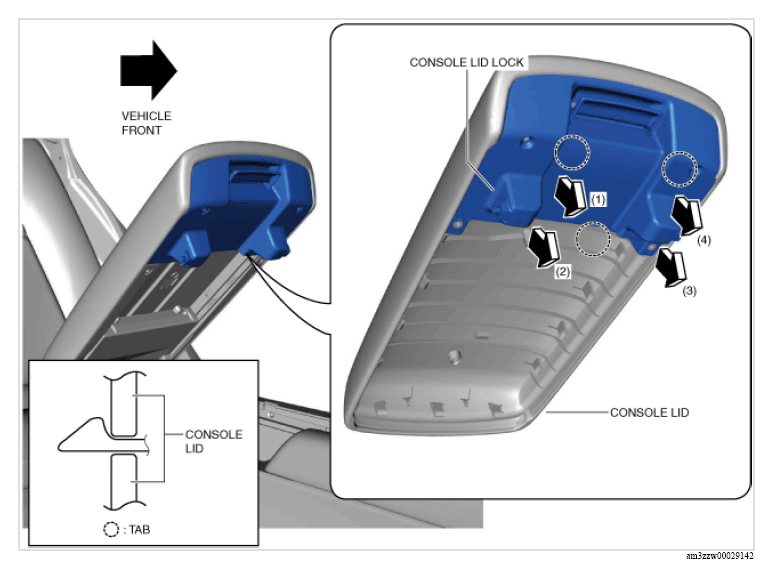

- Using a remover tool, move the console lid lock in the order of arrows (1), (2), (3), and (4) shown in the figure, detach the tabs, and remove the console lid lock.
 Courtesy of MAZDA MOTORS CORP.
|
- Install in the reverse order of removal.
