Assist Handle Removal/Installation: Installation

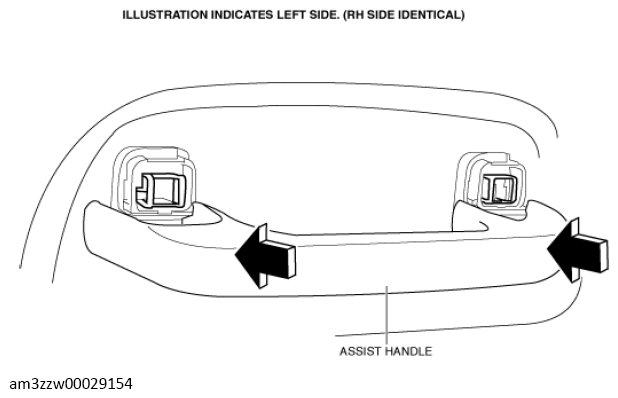

  1. Push the assist handle in the direction of the arrows shown in the figure and insert it into the assist handle brackets.
    G13560622Courtesy of MAZDA MOTORS CORP.

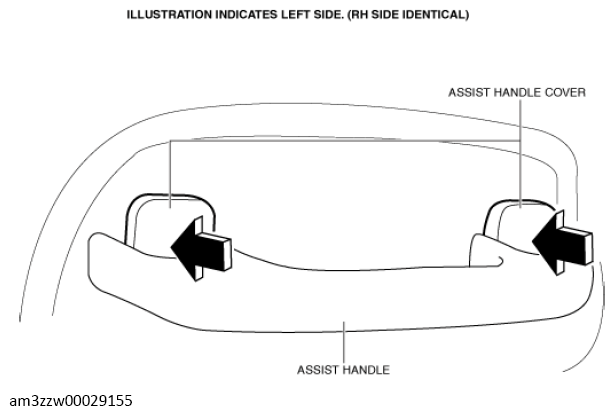

  2. Push the assist handle covers in the direction of the arrows shown in the figure to install the assist handle.
    G13560623Courtesy of MAZDA MOTORS CORP.
