Rear Outer Handle Removal/Installation: Notes
- Fully close the rear door glass.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US)
.)
- Remove the following parts:
- Power window sub switch (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION
.)
- Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION
.)
- Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)

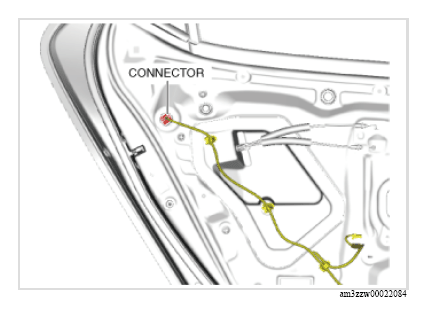

- Disconnect the connector.
 Courtesy of MAZDA MOTORS CORP.
|
CAUTION:
- When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

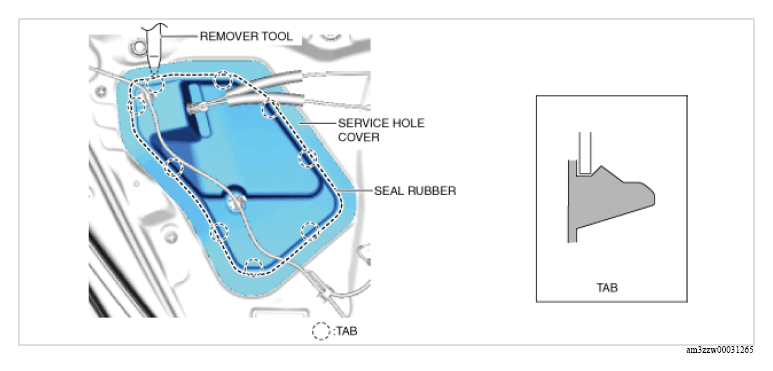

- Detach the service hole cover tabs from the body using a remover tool.
 Courtesy of MAZDA MOTORS CORP.
|

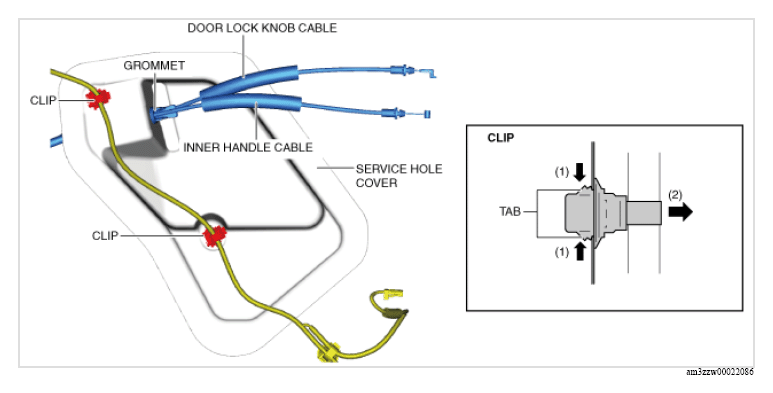

- Remove the clips.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the grommet.
- Pull the door lock knob cable and the inner handle cable from the service hole cover.
- Remove the service hole cover. (See SERVICE HOLE COVER INSTALLATION NOTE .)

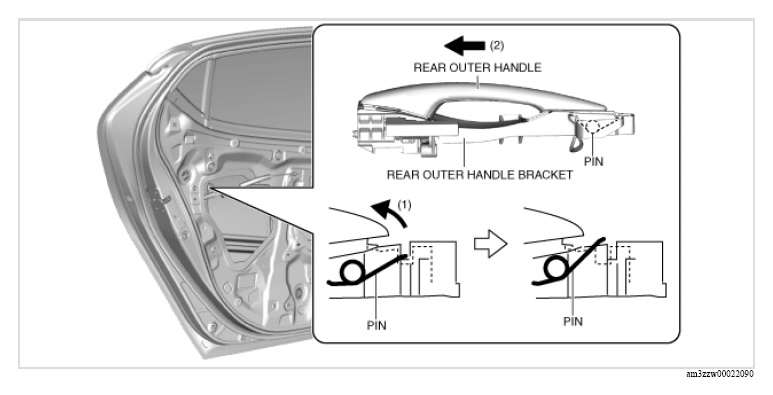

- While pressing the rear outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the rear outer handle in the direction of arrow (2) and detach the rear outer handle bracket pin from the rear outer handle.
 Courtesy of MAZDA MOTORS CORP.
|

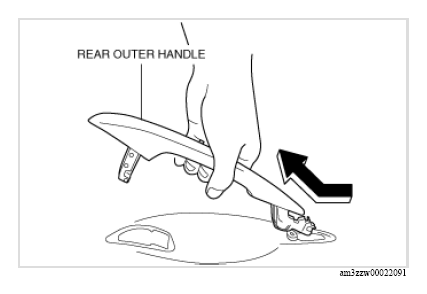

- Remove the rear outer handle in the direction of the arrow shown in the figure. (See REAR OUTER HANDLE INSTALLATION NOTE .)
 Courtesy of MAZDA MOTORS CORP.
|

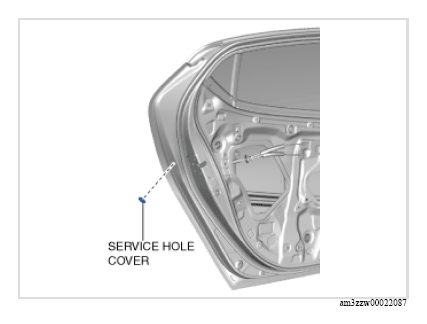

- Remove the service hole cover.
 Courtesy of MAZDA MOTORS CORP.
|

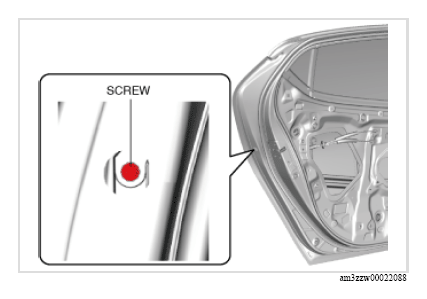

- Loosen the screw.
 Courtesy of MAZDA MOTORS CORP.
|

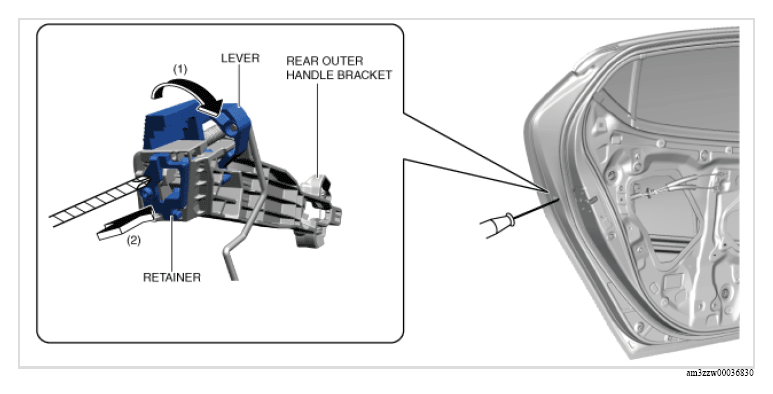

- While moving the lever in the direction of arrow (1) shown in the figure, press the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.
 Courtesy of MAZDA MOTORS CORP.
|

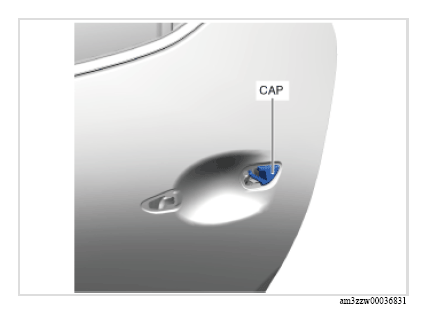

- Remove the cap. (See CAP INSTALLATION NOTE .)
 Courtesy of MAZDA MOTORS CORP.
|

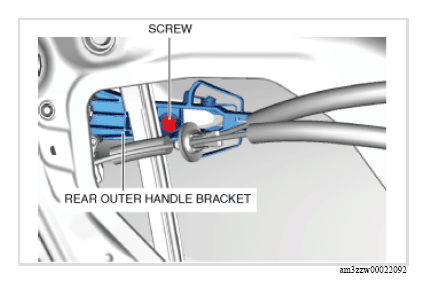

- Loosen the screw securing the rear outer handle bracket.
 Courtesy of MAZDA MOTORS CORP.
|
NOTE:
- The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

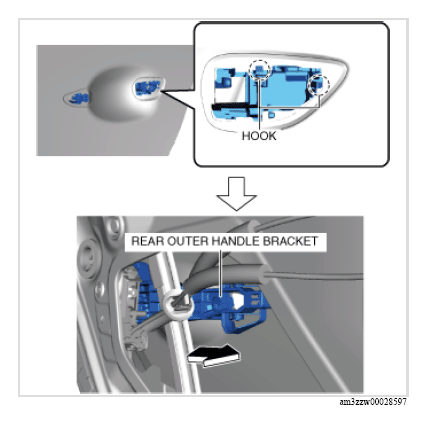

- Pull the rear outer handle bracket in the direction of the arrow shown in the figure and detach the rear outer handle bracket hook from the body.
 Courtesy of MAZDA MOTORS CORP.
|

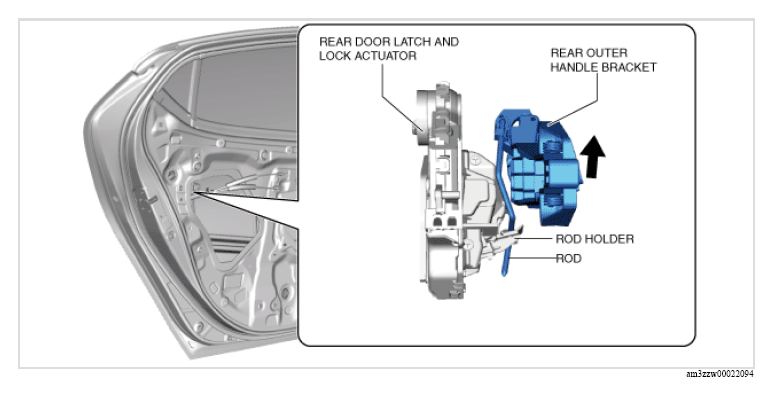

- Lift the rear outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See REAR OUTER HANDLE BRACKET INSTALLATION NOTE .)
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the rear outer handle bracket.

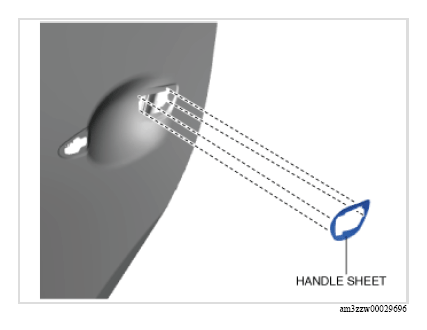

- Remove the handle sheet from the body.
 Courtesy of MAZDA MOTORS CORP.
|
- Install in the reverse order of removal.
