Liftgate Lock Striker Removal/Installation: Notes

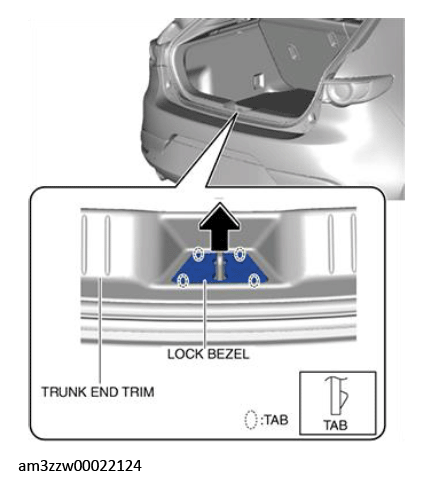

- Remove the lock bezel in the direction of the arrow shown in the figure while detaching tabs.
 Courtesy of MAZDA MOTORS CORP.
|

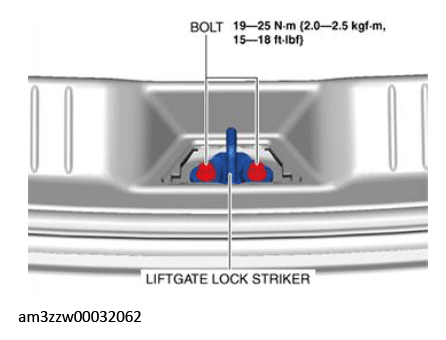

- Remove the bolts, then remove the liftgate lock striker. (See LIFTGATE LOCK STRIKER INSTALLATION NOTE .)
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
