Rear Inner Handle

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the power window sub switch. (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

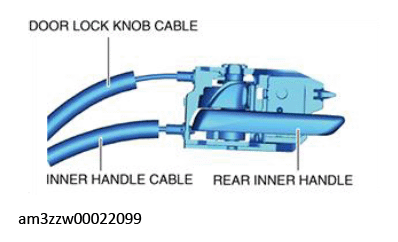

  4. Disconnect the door lock knob cable and the inner handle cable from the rear inner handle.
    G13179076Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
