Battery Tray Installation Note
- Set the battery tray to the installation position.

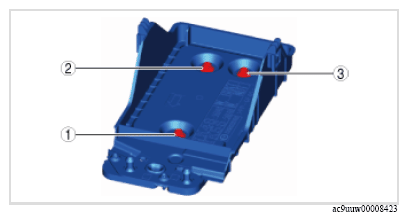

- Tighten the battery tray installation bolts in the order shown in the illustration.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
22-30 N.m {2.3-3.0 kgf.m, 17-22 ft.lbf}
- Install the rubber at the two locations on the air cleaner component to the battery tray.
 Courtesy of MAZDA MOTORS CORP.
|
