Nut Installation Note

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

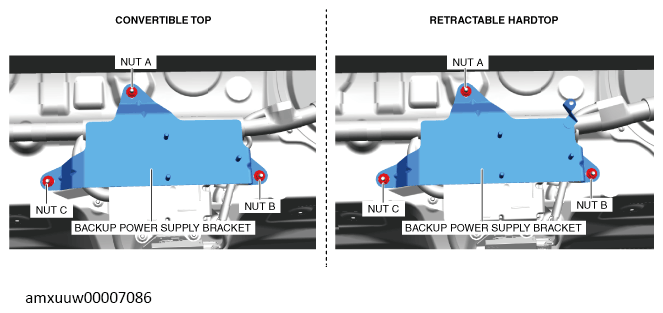

  1. Tighten nut A.
    G13491702Courtesy of MAZDA MOTORS CORP.
  2. Tighten nut B.
  3. Tighten nut C.
