Exhaust System Removal/Installation: AWD: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove in the order indicated in the table.
Remove the insulator. (See EXHAUST MANIFOLD INSULATOR INSTALLATION NOTE (2WD) .)
Install in the reverse order of removal.
Step 1

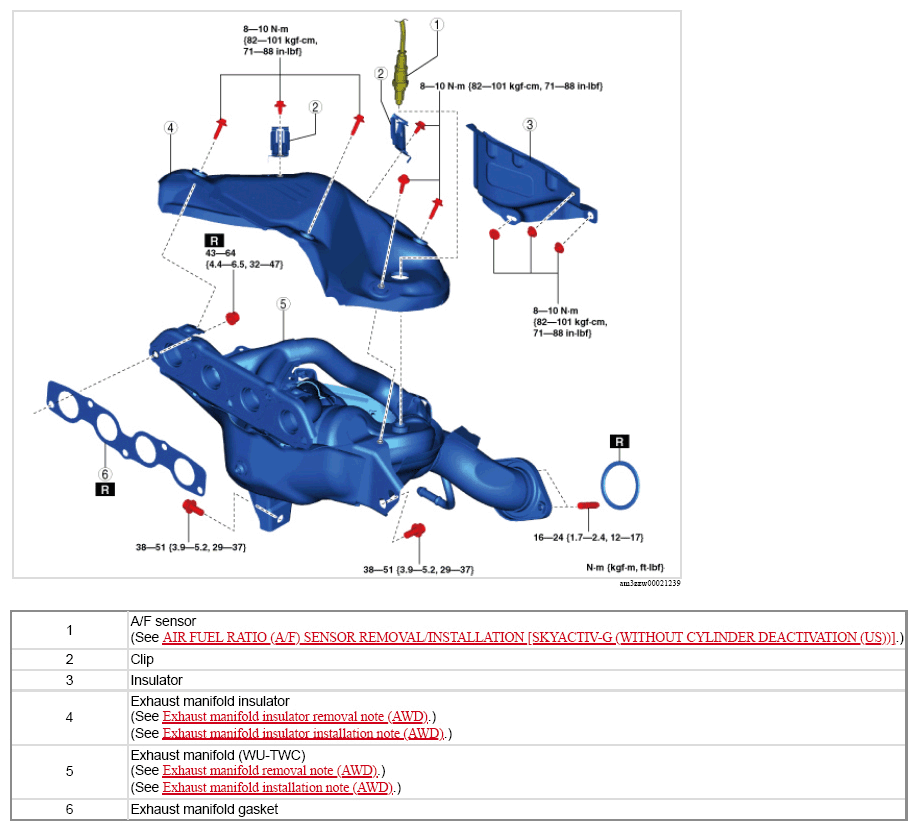

Fig 1: Exhaust System Components With Torque Specification (AWD; Step 1)
Courtesy of MAZDA MOTORS CORP.

Step 2

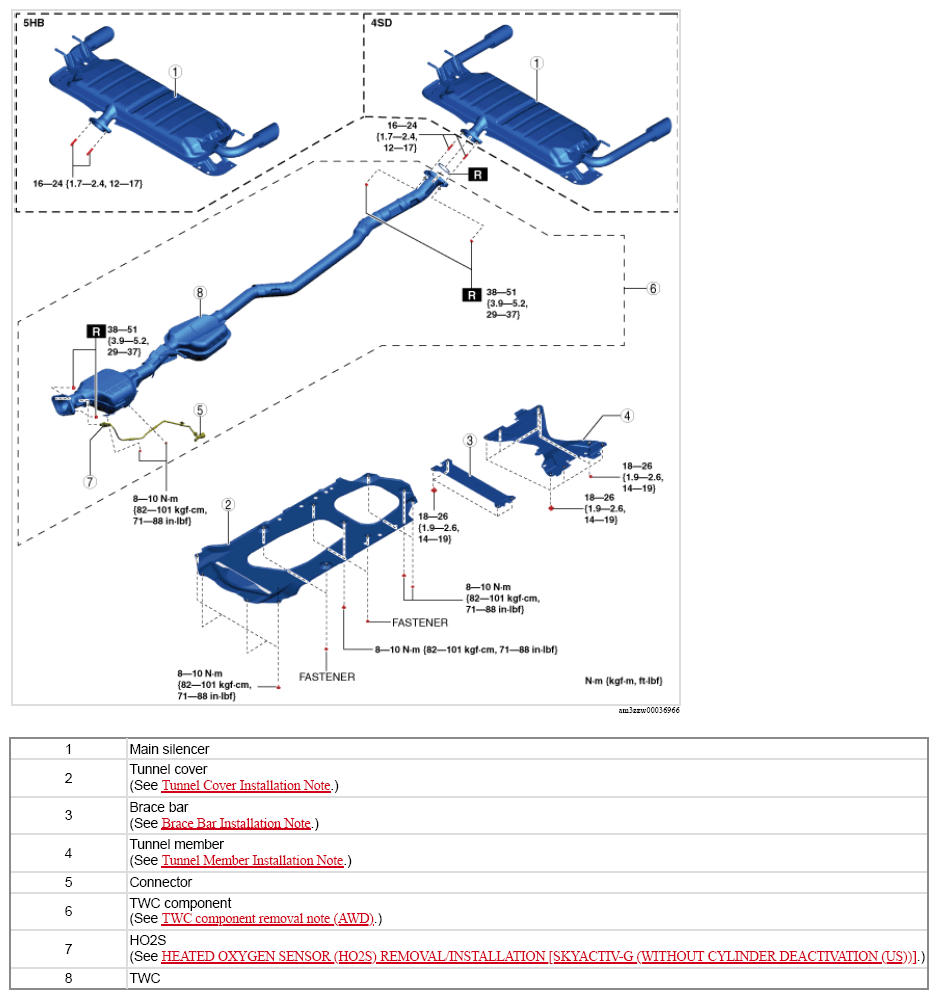

Fig 2: Exhaust System Components With Torque Specification (AWD; Step 2)
Courtesy of MAZDA MOTORS CORP.
