Idler Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

Replacement Part

Bolt
Quantity: 1
Location of use: Magnetic clutch
NOTE:
  • The idler is only installed to vehicles without A/C.
  1. Disassemble in the order indicated in the table.

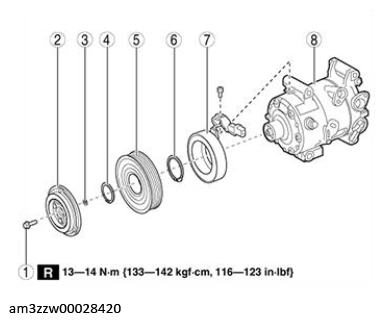

    Fig 1: Idler Components With Torque Specification - SKYACTIV-G (Without Cylinder Deactivation; US)
    G13174330Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bolt
    (See Bolt removal/installation note .)
    2 Pressure plate
    3 Shim
    4 Snap ring
    5 idler pulley
    6 Snap ring
    7 Stator
    8 Idler body
  2. Assemble in the reverse order of disassembly.
  3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .)
