Exhaust System Removal/Installation: 2WD: Notes

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
2. Remove in the order indicated in the table.
3. Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
4. Install in the reverse order of removal.

Step 1

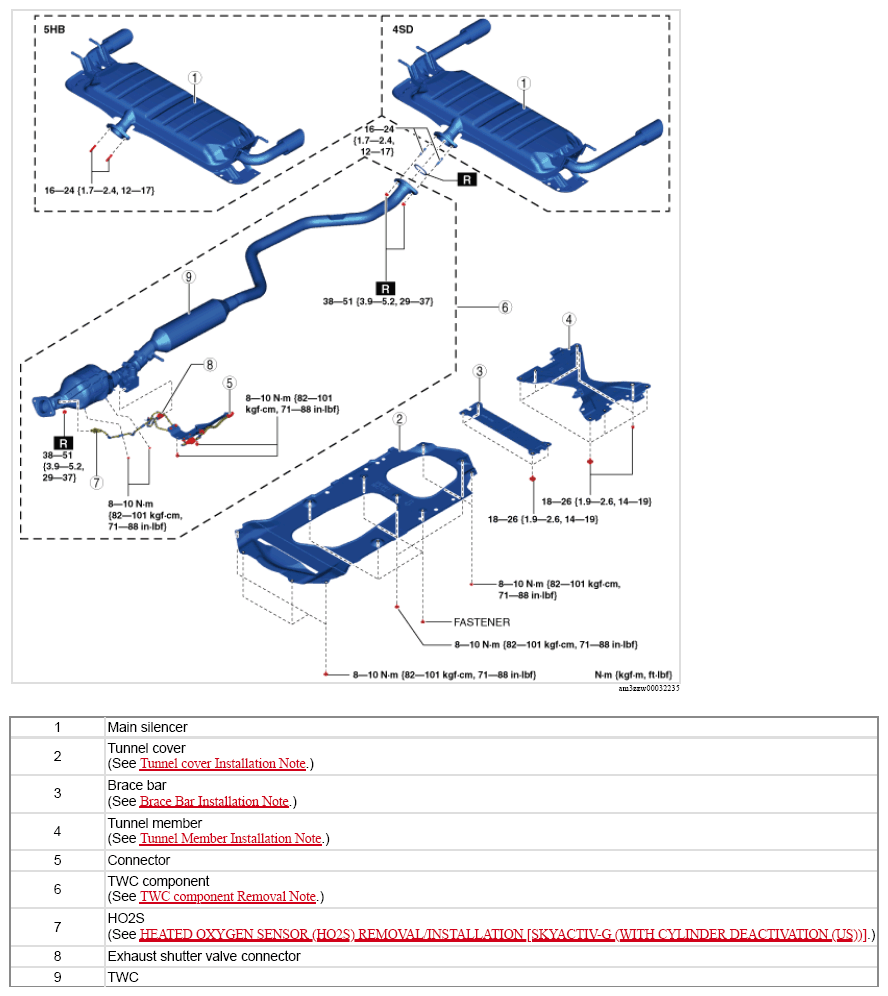

Fig 1: Exhaust System Components With Torque Specification (2WD; Step 1)

Courtesy of MAZDA MOTORS CORP.

Step 2

Fig 2: Exhaust System Components With Torque Specification (2WD; Step 2)

Courtesy of MAZDA MOTORS CORP.
