Mirror Glass Adjustment

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
    2. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    3. Door glass (See DOOR GLASS REMOVAL/INSTALLATION .)
    4. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION .)
    5. Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION .)

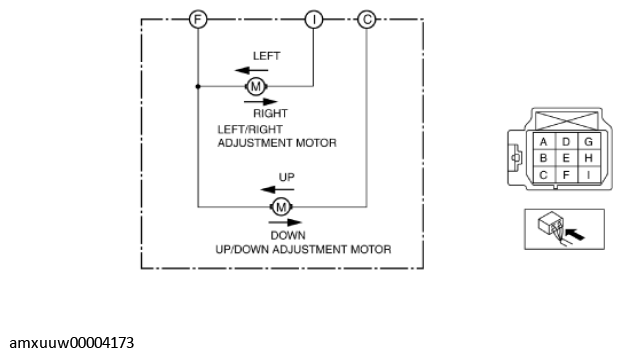

  3. Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
    POWER OUTER MIRROR OPERATION

    B+ terminal Ground terminal Operation
    C F Up
    F C Down
    I F Left
    F I Right
    G11275123Courtesy of MAZDA MOTORS CORP.
