DEF Quality Sensor Installation Note

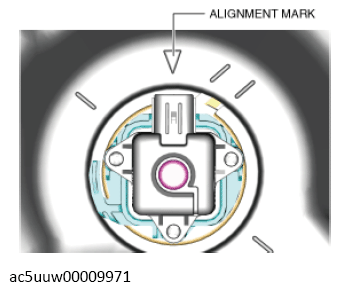

  1. Align the DEF quality sensor connector part with the urea tank alignment mark and assemble.
G13119177Courtesy of MAZDA MOTORS CORP.
