Using Instrument Cluster (Without Center Display)

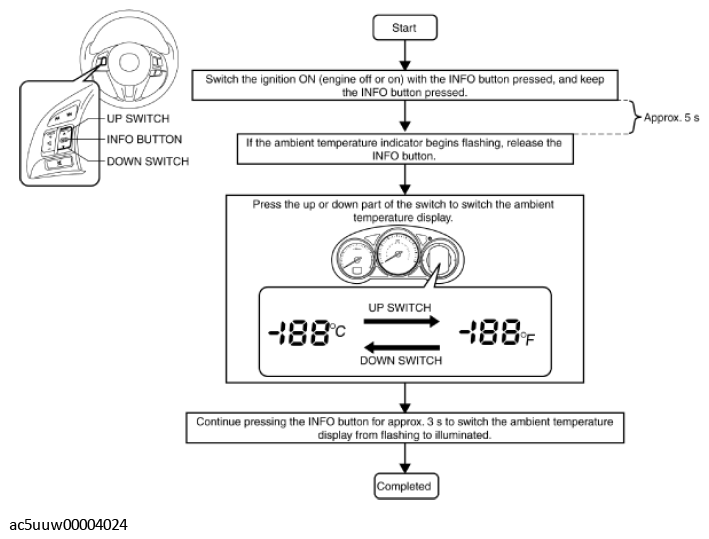

Fig 1: Instrument Cluster Process Chart
Courtesy of MAZDA MOTORS CORP.
