Structural View
WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

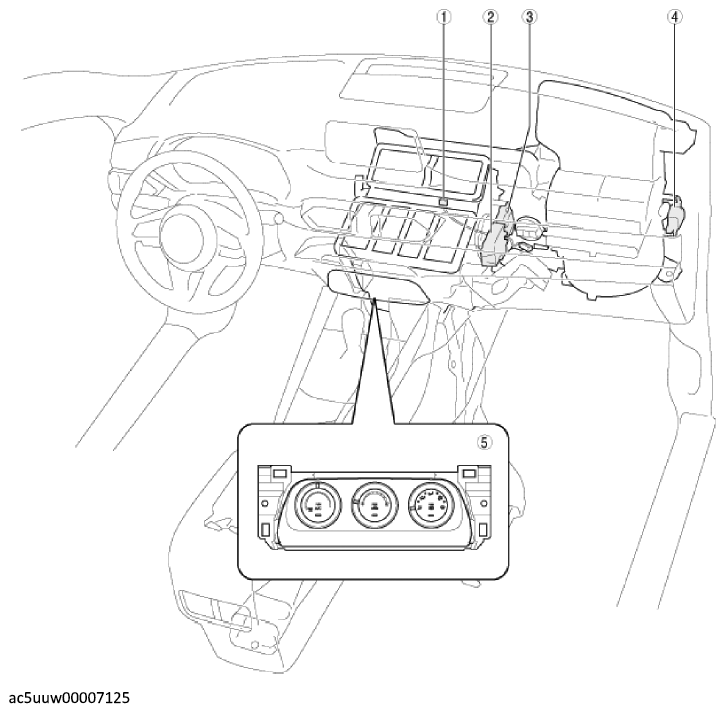

COMPONENT DESCRIPTION
| 1 | Evaporator temperature sensor (See Evaporator Temperature Sensor Removal/Installation (Manual A/C) .) (See Evaporator Temperature Sensor Inspection (Manual A/C) .) |
| 2 | Airflow mode actuator (See Airflow Mode Actuator Removal (Manual A/C) .) (See Airflow Mode Actuator Installation (Manual A/C) .) (See Airflow Mode Actuator Inspection (Manual A/C) .) |
| 3 | Air mix actuator (See Air Mix Actuator Removal/Installation (Manual A/C) .) (See Air Mix Actuator Inspection (Manual A/C) .) |
| 4 | Air intake actuator (See Air Intake Actuator Removal/Installation (Manual A/C) .) (See Air Intake Actuator Inspection (Manual A/C) .) |
| 5 | Climate control unit (See Climate Control Unit Removal/Installation (Manual A/C) .) (See Climate Control Unit Inspection (Manual A/C) .) |

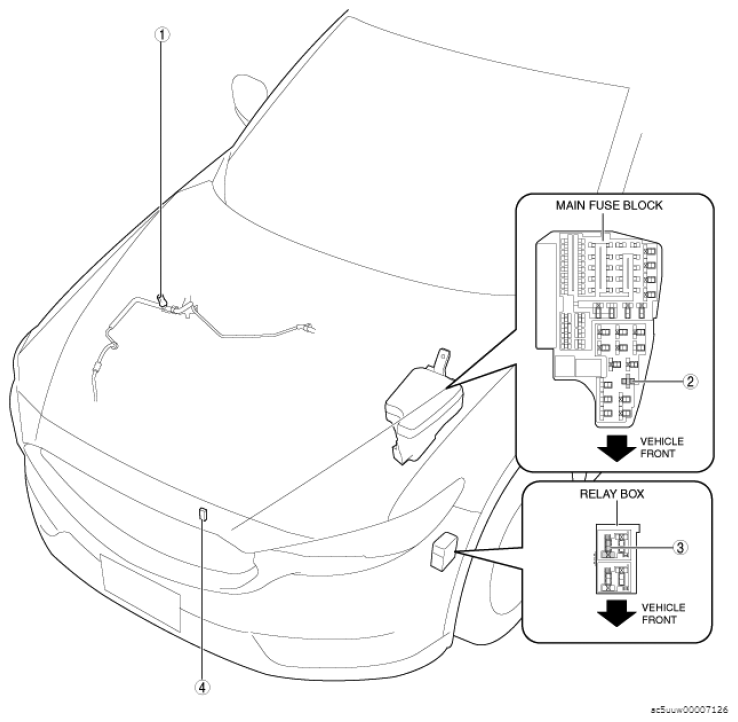

COMPONENT DESCRIPTION
| 1 | Refrigerant pressure sensor (See Refrigerant Pressure Sensor Removal/Installation (Manual A/C) .) (See Refrigerant Pressure Sensor Inspection (Manual A/C) .) |
| 2 | Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 3 | A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 4 | Ambient temperature sensor (See Ambient Temperature Sensor Removal/Installation (Manual A/C) .) (See Ambient Temperature Sensor Inspection (Manual A/C) .) |
