No. 1 Engine Mount: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

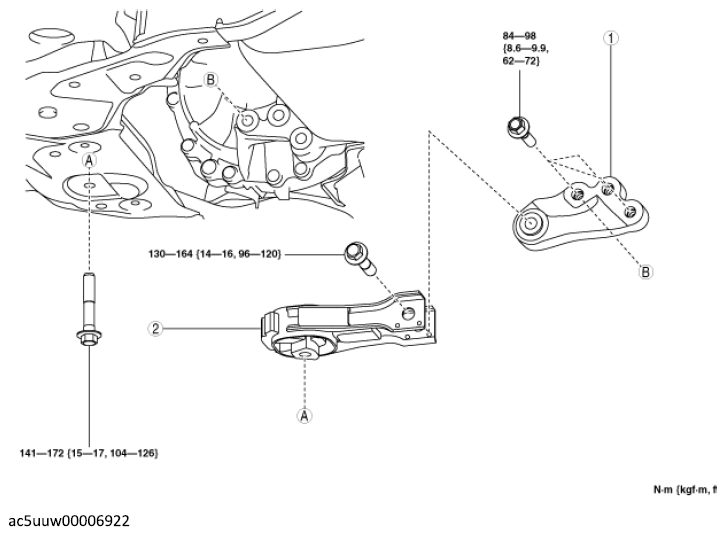

Fig 1: Engine Mount Components With Torque Specification
G12228332Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 No. 1 engine mount bracket
(See No. 1 engine mount installation note .)
2 No. 1 engine mount rubber
(See No. 1 engine mount installation note .)
