Mazda
>>
2018
>>
3 Touring, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
On-Board Diagnostics - Dynamic Stability Control (DSC)
>>
Dynamic Stability Control System Wiring Diagram Dynamic Stability Control (DSC)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Dynamic Stability Control System Wiring Diagram Dynamic Stability Control (DSC)

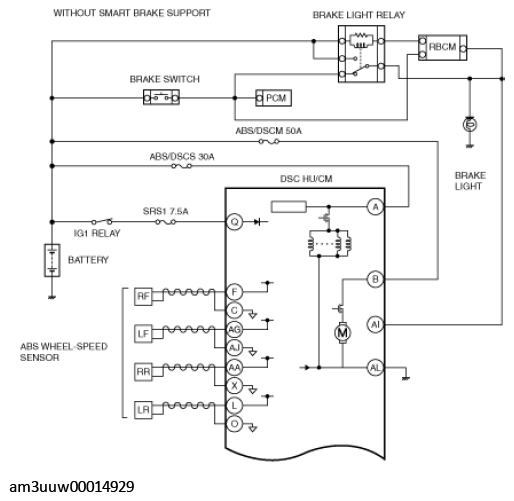

Fig 1: Dynamic Stability Control System Wiring Diagram (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

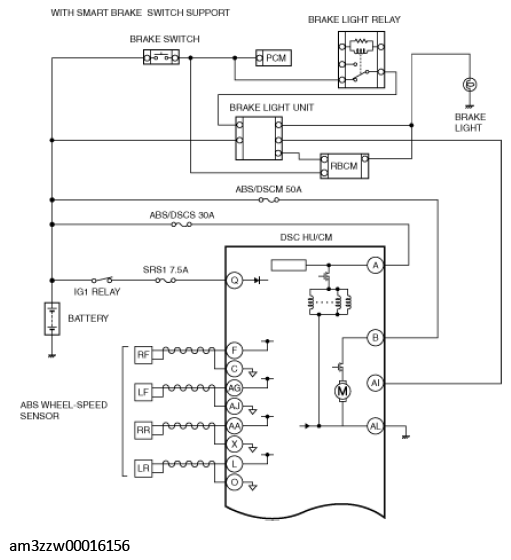

Fig 2: Dynamic Stability Control System Wiring Diagram (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

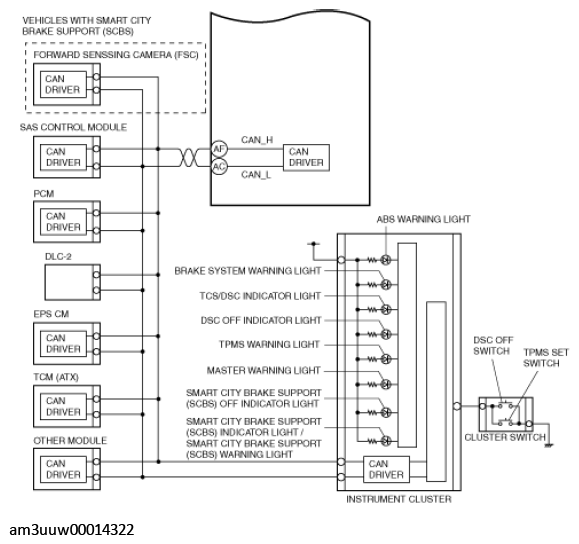

Fig 3: Dynamic Stability Control System Wiring Diagram (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
