Auto-Dimming Rearview Mirror Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Disconnect the connector.

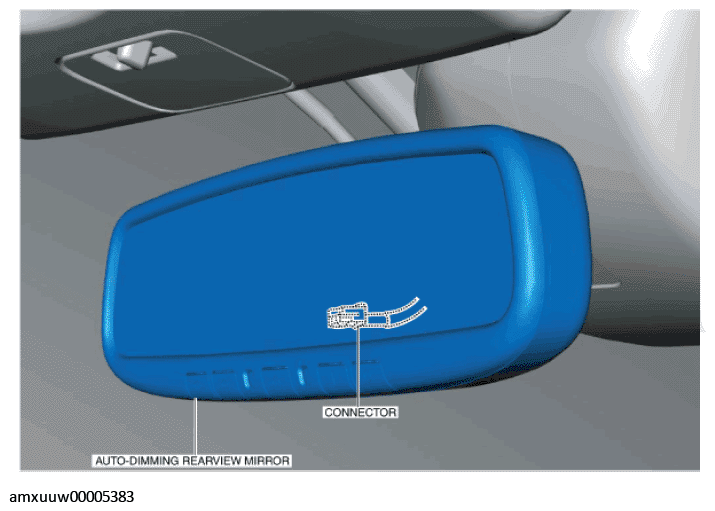

    Fig 1: Identifying Auto-Dimming Rearview Mirror And Connector
    G11275066Courtesy of MAZDA MOTORS CORP.
  3. Remove the cover in the direction of the arrow shown in the figure.

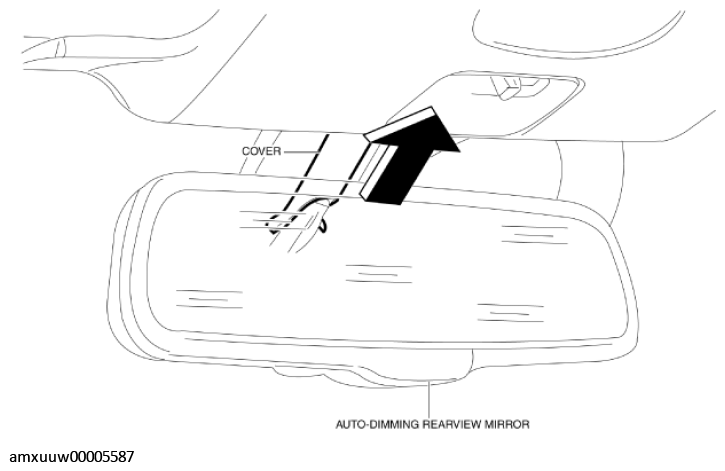

    Fig 2: Removing Auto-Dimming Rearview Mirror Cover
    G11275067Courtesy of MAZDA MOTORS CORP.
  4. Loosen the screw.
    Fig 3: Identifying Auto-Dimming Rearview Mirror And Screw
    G11275068Courtesy of MAZDA MOTORS CORP.
  5. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

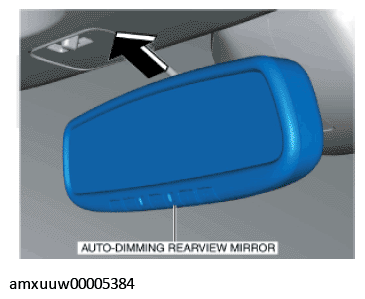

    Fig 4: Removing Auto-Dimming Rearview Mirror
    G11275069Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
