DTC B1DA1-94; Error Signal Received From Top Lock Motor: Notes

Description Error signal received from top lock motor
Detection condition
  • The retractable fastback control module receives a signal from the top lock motor while the top lock motor is not operating.
Fail-safe
  • Stops retractable fastback operation
Possible cause
  • Short to power supply in wiring harness between retractable fastback control module terminal 2B and top lock motor terminal E
  • Short to power supply in wiring harness between retractable fastback control module terminal 2F and top lock motor terminal A
  • Retractable fastback control module malfunction
  • top lock motor malfunction

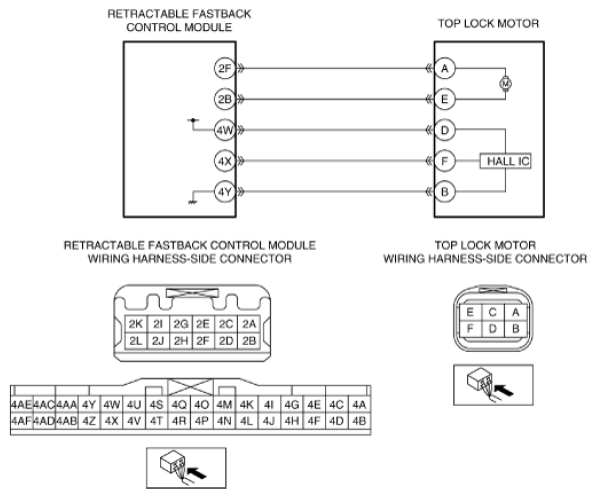

G11275652
