Instrumentation/Driver Info. Location Index: Interior

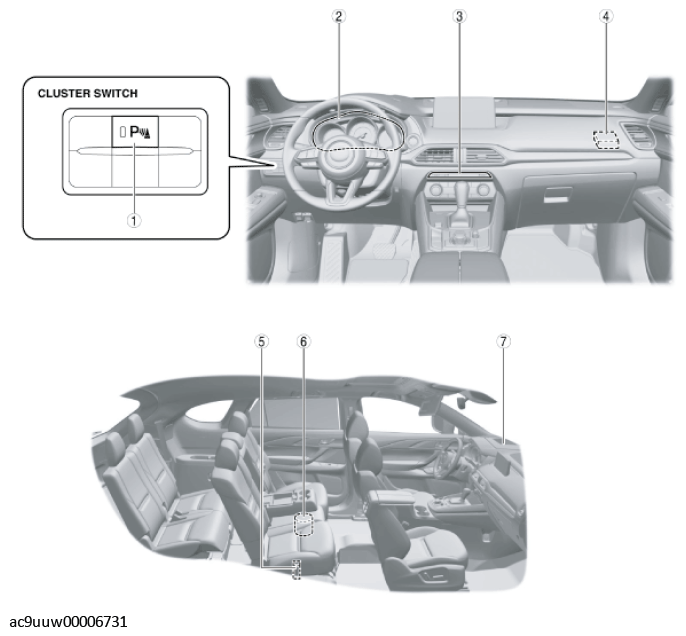

Fig 1: Instrumentation/Driver Information Related Components - Interior

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Parking sensor switch (With parking sensor system) (See PARKING SENSOR SWITCH REMOVAL/INSTALLATION .) (See PARKING SENSOR SWITCH INSPECTION .)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER OPERATION RECORD .) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE .)
3	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .) (See INDICATOR UNIT INSPECTION .)
4	Parking sensor control module (With parking sensor system) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION .) (See PARKING SENSOR CONTROL MODULE INSPECTION .)
5	Fuel gauge sender unit (sub) (AWD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .) (See FUEL GAUGE SENDER UNIT INSPECTION [AWD] .)
6	Fuel gauge sender unit (2WD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD] .) (See FUEL GAUGE SENDER UNIT INSPECTION [2WD] .)
6	Fuel gauge sender unit (main) (AWD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .) (See FUEL GAUGE SENDER UNIT INSPECTION [AWD] .)
7	Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
